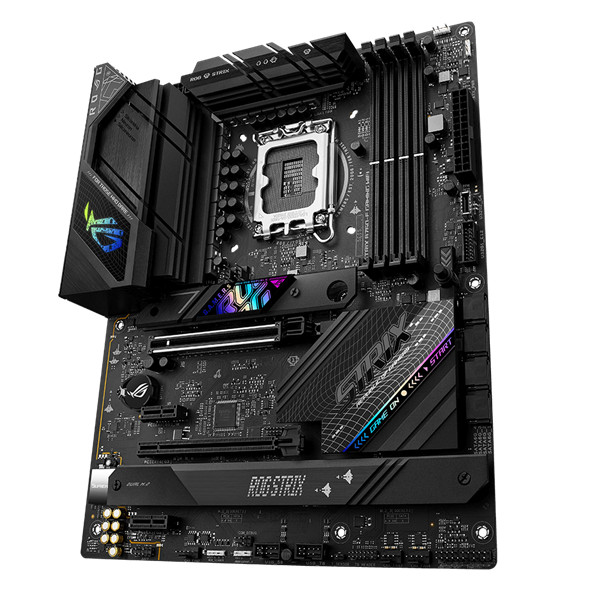

ASUS Alaplap S1700 ROG STRIX B760-F GAMING WIFI INTEL B760, ATX

101 090 Ft

ASUS Alaplap S1700 ROG STRIX B760-F GAMING WIFI INTEL B760, ATX

Name: ASUS Alaplap S1700 ROG STRIX B760-F GAMING WIFI INTEL B760, ATX
Brand: ASUS PCC
SKU: 330811
Price: 101090 HUF
Availability: InStock

Cikkszám:

330811

Raktáron

ASUS Alaplap S1700 ROG STRIX B760-F GAMING WIFI INTEL B760, ATX

Gyártó:

ASUS PCC

Garancia:

36 hónap

További adatok

101 090 Ft

Részletek

CPU

Intel^® Socket LGA1700 for 13th Gen Intel^® Core™ Processors & 12th Gen Intel^® Core™, Pentium^® Gold and Celeron^® Processors
Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel^® B760 Chipset

Memory

4 x DIMM, Max. 128GB, DDR5 7800(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel^® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x DisplayPort**
1 x HDMI^® port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
**Supports max. 8K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

Intel^{^®} 13th & 12th Gen Processors*
1 x PCIe 5.0x16 slot (supports x16 mode)**
Intel^{^®}B760 Chipset**
1 x PCIe 3.0 x16 slot (supports x4 mode)***
2 x PCIe 3.0 x1 slots
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel^® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel^® B760 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 )
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
4 x SATA 6Gb/s ports
* Intel^® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

1 x Intel^® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth^® v5.3**
* WiFi 6E 6GHz regulatory may vary between countries.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^{^®})
1 x USB 3.2 Gen 2 port (1 x Type-A)
6 x USB 3.2 Gen 1 ports (6 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback"
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
*The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
6 x USB 3.2 Gen 1 ports (6 x Type-A)
1 x DisplayPort
1 x HDMI^® port
1 x Wi-Fi Module
1 x Intel^® 2.5Gb Ethernet port
5 x Audio jacks *
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C^® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 xThunderbolt™ (USB4^{^®}) header

Special Features

Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers

Software Features

ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS^® Sound Unbound
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- Performance And Power Saving Utility
- DIGI+ VRM
- PC Cleaner
MyAsus
Norton 360 for Gamers
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
MemTest86

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME

Accessories

Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties package
1 x M.2 Q-Latch package
2 x M.2 Rubber Package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
Documentation
1 x User guide

Operating System

Windows^® 11, Windows^® 10 64-bit

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Adatok

Gyártói cikkszám:

ROG STRIX B760-F GAMING WIFI

EAN:

4711081974666

Gyártó:

ASUS

EAN:

4711081974666

Kivitel:

Dobozos

Memória órajel:

5600

Memória típus:

DDR5

Wireless:

Van

Párhuzamos port:

Nincs

Soros port:

Nincs

HDMI:

Van

Display Port:

Van

D-Sub:

Nincs

Thunderbolt:

Nincs

DVI:

Nincs

Chipset gyártó:

Intel

Foglalat típusa:

S1700

SATA III:

USB 2.0:

USB 3.0:

USB 3.1:

Quad Channel:

Nincs

M.2 foglalat:

Van

Audio:

7.1 HD

Grafikus foglalat:

2 x PCI-Ex16x

Form Factor:

ATX

LAN1:

100/1000/2500 Mb/s

Max memória:

128

Memória foglalatok száma:

Raid:

Igen

PS/2 Port:

PCI foglalatok száma:

PCI-E foglalatok száma:

VGA integrált:

Nincs

Tömeg:

1,18 kg/db
