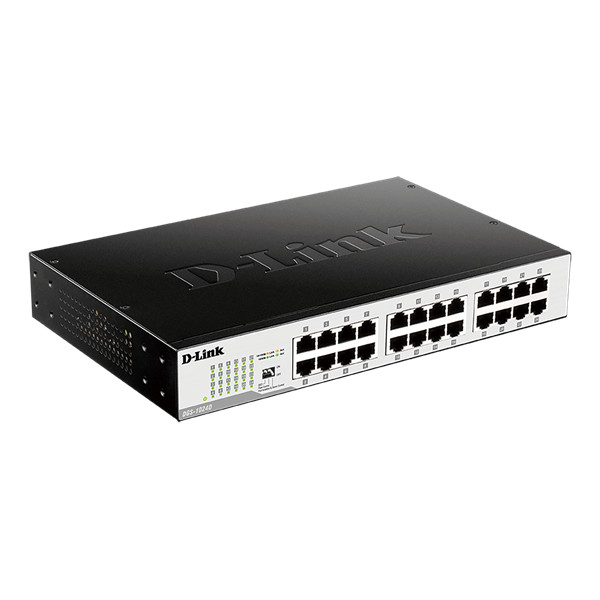

D-LINK Switch 24x1000Mbps Fémházas Asztali, DGS-1024D/E

Name: D-LINK Switch 24x1000Mbps Fémházas Asztali, DGS-1024D/E
Brand: DLINK
SKU: 38703
Price: 37590 HUF
Availability: InStock

Cikkszám:

38703

D-LINK Switch 24x1000Mbps Fémházas Asztali, DGS-1024D/E

Raktáron

D-LINK Switch 24x1000Mbps Fémházas Asztali, DGS-1024D/E

Gyártó:

DLINK

Garancia:

24 hónap

További adatok

37 590 Ft

Részletek

Technical Specifications:

D-Link DGS-1016D/DGS-1024D Specifications
General
Number of Ports	Sixteen 10/100/1000 Gigabit ports	Twenty-four 10/100/1000 Gigabit ports
Standards	IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet ANSI/IEEE 802.3 NWay auto-negotiation IEEE 802.3x Flow Control
Data Tranfer Rates	Ethernet: 10 Mbps (half duplex) 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex) 200 Mbps (full duplex) Gigabit Ethernet: 2000 Mbps (full duplex)
Network Cables	10BASE-T: UTP CAT 3, 4, 5/5e (100 m max) EIA/TIA-586 100-ohm STP (100 m max) 100BASE-TX, 1000BASE-T: UTP CAT 5/5e (100 m max) EIA/TIA-568 100-ohm STP (100 m max)
Functionality
D-Link Green Features	IEEE 802.3az Energy Efficient Ethernet (EEE) Link status detection power saving Cable length detection power saving RoHS Compliance
Media Interface Exchange	Auto MDI/MDIX
Transmission Method	Store-and-Forward switching method
MAC Address Table	8K MAC addresses
RAM Buffer	512 KBytes RAM for data buffering
Jumbo Frames	9216 Bytes	9600 Bytes
Switching Capacity	32 Gbps	48 Gbps
Port Packet Filtering	10M: 14,880 pps 100M: 148,800 pps 1000M: 1,488,000 pps
Physical
LEDs	Power LED 16 Link/Activity/Speed LEDs (one per port)	Power LED 24 Link/Activity/Speed LEDs (one per port)
Power Inputs	100 to 240V AC Input
Power Consumption	Standby: 4.48 watts Maximum: 9.84 watts	Standby: 6.5 watts Maximum: 13.5 watts
Heat Dissipation	Standby: 15.2768 btU/h Maximum: 33.5544 btU/h	Standby: 22.165 btU/h Maximum: 44.035 btU/h
MTBF	795,539 hours	633,536 hours
Dimensions	11.02 x 4.92 x 1.73 inches (280 x 125 x 44 mm)	11.02 x 7.09 x 1.73 inches (280 x 180 x 44 mm)
Weight	2.34 lbs (1.06 kg)	3.66 lbs (1.66 kg)
Operating Temperature	32 to 104 °F (0 to 40 °C)
Storage Temperature	14 to 158 °F (-10 to 70 °C)
Humidity	5% to 90% non-condensing
Certifications	FCC Class A ICES-003 Class A CE Class A C-Tick Class A CB cUL

Adatok

Gyártói cikkszám:

DGS-1024D/E

EAN:

790069269912

Gyártó:

DLINK

EAN:

790069269912

Rack-be szerelhető:

Van

Switch típus:

Fixed port

Menedzselhetőség:

Nem menedzselhető

Portok száma:

Port típusa:

1Gb Fiber

Switching kapacitás:

Menedzselhető:

Nincs

PoE (Power over Ethernet):

Nincs

Tömeg:

1,742 kg/db
