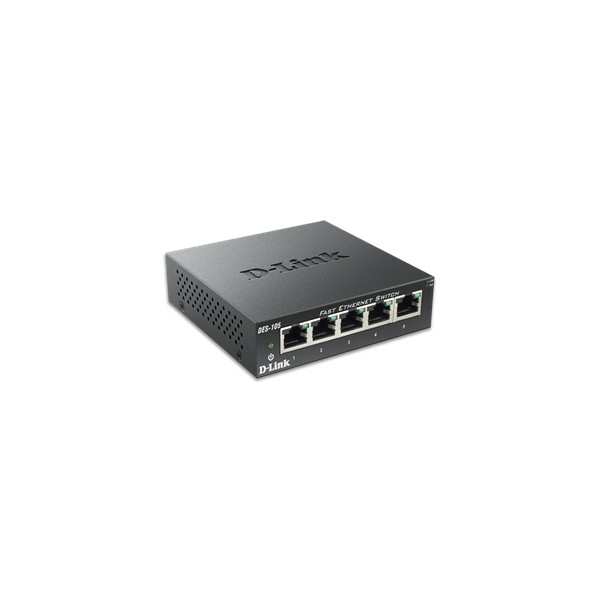

D-LINK Switch 5x100Mbps Fémházas Asztali, DES-105/E

Name: D-LINK Switch 5x100Mbps Fémházas Asztali, DES-105/E
Brand: DLINK
SKU: 226681
Price: 7490 HUF
Availability: InStock

Cikkszám:

226681

Raktáron

D-LINK Switch 5x100Mbps Fémházas Asztali, DES-105/E

Gyártó:

DLINK

Garancia:

60 hónap

További adatok

7 490 Ft

Részletek

Technical Specifications:

D-Link DES-105/DES-108 Specifications
	DES-105	DES-108
Switching Capacity	1.0 Gbps	1.6 Gbps
Standards	IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) ANSI/IEEE 802.3 NWay auto-negotiation IEEE 802.3x Flow Control IEEE 802.1p QoS IEEE 802.3az Energy-Efficient Ethernet (EEE)
Protocol	CSMA/CD
Data Transfer Rates	Ethernet: 10 Mbps (half duplex) 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex) 200 Mbps (full duplex)
Network Cables	10BASE-T: UTP CAT 3, 4, 5/5e (100 m max.) EIA/TIA-586 100-ohm STP (100 m max.) 100BASE-TX: UTP CAT 5/5e (100 m max.) EIA/TIA-568 100-ohm STP (100 m max.)
Media Interface Exchange	Auto MDI/MDIX adjustment for all ports
LED Indicators	Per port: Link/Activity Per device: Power
Transmission Method	Store-and-forward
MAC Address Table	2K	1K
MAC Address Learning	Automatic update
Packet Filtering/Forwarding Rates	Ethernet: 14,880 pps per port Fast Ethernet: 148,800 pps per port
RAM Buffer	384 KBytes per device 768 KBytes per device
Jumbo Frames	2048 Bytes
QoS	4 Queues, strict mode
General Specifications
DC Input	External 5 V/0.55 A Level “V” Power Adapter
Power Consumption	Power On (Standby): DC input: 0.15 watts AC input: 0.25 watts Maximum: DC input: 0.85 watts AC input: 2.17 watts	Power On (Standby): DC input: 0.25 watts AC input: 0.3 watts Maximum: DC input: 1.3 watts AC input: 2.4 watts
Heat Dissipation	Power On (Standby) AC input: 0.853 BTU/h Maximum DC input: 2.9002 BTU/h	Power On (Standby) AC input: 1.0236 BTU/h Maximum DC input: 4.4356 BTU/h
MTBF	1,398,635 hours	863,878 hours
Operating Temperature	32 to 104 °F (0 to 40 °C)
Storage Temperature	14 to 158 °F (-10 to 70 °C)
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% RH non-condensing
Dimensions	3.9 x 3.8 x 1.1 inches (100 x 98 x 28 mm)	6.3 x 4 x 1.1 inches (162 x 102 x 28 mm)
Weight	0.57 lbs (256 grams)	0.90 lbs (412 grams)
Certifications	FCC Class B ICES-003 Class B CE Class B C-Tick Class B VCCI Class B cUL CB

Adatok

Gyártói cikkszám:

DES-105/E

EAN:

790069368189

Gyártó:

DLINK

EAN:

790069368189

Rack-be szerelhető:

Nincs

Switch típus:

Fixed port

Menedzselhetőség:

Nem menedzselhető

Portok száma:

Port típusa:

100 Mbps

Switching kapacitás:

Menedzselhető:

Nincs

PoE (Power over Ethernet):

Nincs

Tömeg:

340 g/db
