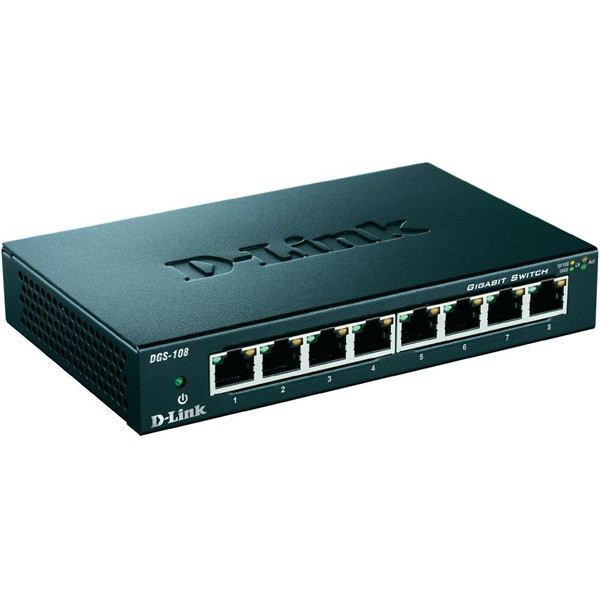

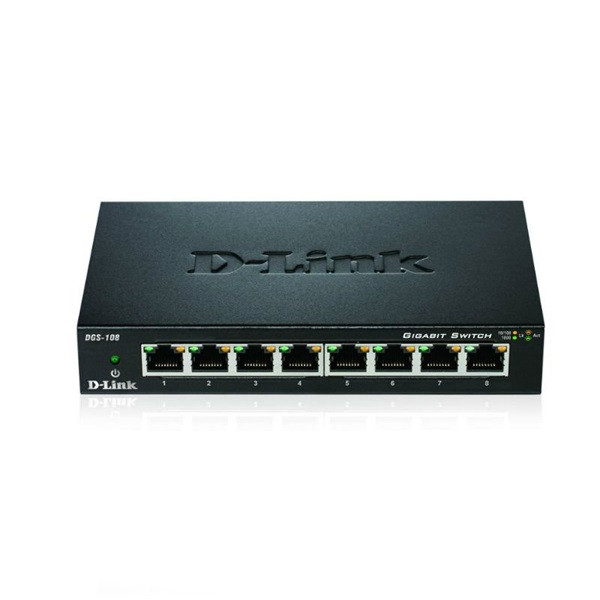

D-LINK Switch 8x1000Mbps Fémházas Asztali, DGS-108/E

Name: D-LINK Switch 8x1000Mbps Fémházas Asztali, DGS-108/E
Brand: DLINK
SKU: 204536
Price: 12590 HUF
Availability: InStock

Cikkszám:

204536

D-LINK Switch 8x1000Mbps Fémházas Asztali, DGS-108/E

Raktáron

D-LINK Switch 8x1000Mbps Fémházas Asztali, DGS-108/E

Gyártó:

DLINK

Garancia:

60 hónap

További adatok

12 590 Ft

Részletek

Technical Specifications:

D-Link DGS-105 Specifications
	DGS-105	DGS-108
Switching Fabric	10Gbps	16Gbps
Standards	IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twistedpair copper) ANSI/IEEE 802.3 NWay auto-negotiation IEEE 802.3x Flow Control IEEE 802.1p QoS IEEE 802.3az Energy-Efficient Ethernet (EEE)
Protocol	CSMA/CD
Data Transfer Rates	Ethernet: - 10 Mbps (half duplex) - 20 Mbps (full duplex) Fast Ethernet: - 100 Mbps (half duplex) - 200 Mbps (full duplex) Gigabit Ethernet: - 2000 Mbps (full duplex)
Topology	Star
Network Cables	10BASE-T: - UTP CAT 3, 4, 5/5e (100 m max.) - EIA/TIA-586 100-ohm STP (100 m max.) 100BASE-TX: - UTP CAT 5/5e (100 m max.) - EIA/TIA-568 100-ohm STP (100 m max.)
Media Interface Exchange	Auto MDI/MDIX adjustment for all ports
LED Indicators	Per port:Link/Activity Per device:Power
Transmission Method	Store-and-forward
MAC Address Table	2K	8K
MAC Address Learning	Automatic Update
Packet Filtering/Forwarding Rates	Ethernet: 14,880 pps per port Fast Ethernet:148,800 pps per port Gigabit Ethernet: 1,488,000 pps per port
RAM Buffer	128KB per device
Jumbo Frames	9,000 Bytes
QoS	4 Queues, strict mode

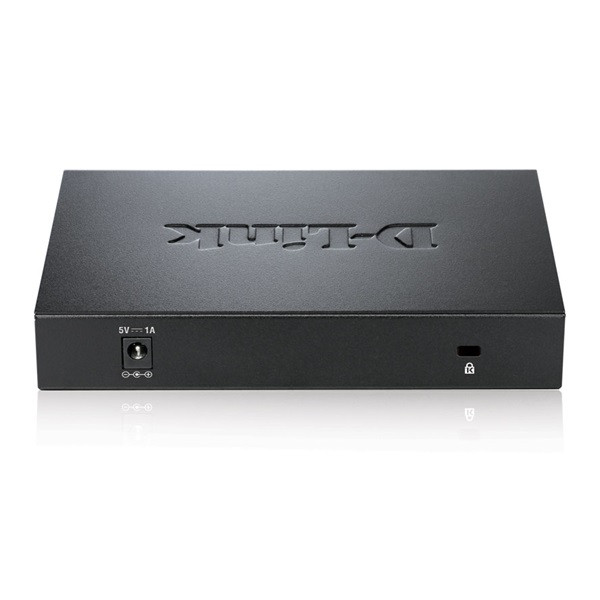

DC Input	External 5 V/1 A Level "V" Power Adapter
Power Consumption	Power On (Standby): - DC input: 0.5 watts - AC input: 1.0 watts Maximum: - DC input: 2.01 watts - AC input: 3.10 watts	Power On (Standby): - DC input: 0.55 watts - AC input: 1.0 watts Maximum: - DC input: 2.8 watts - AC input: 4.5 watts
Heat Dissipation	Power On (Standby) AC input:3.41 BTU/h Maximum DC input:6.854 BTU/h	Power On (Standby) AC input:3.41 BTU/h Maximum DC input:9.548 BTU/h
MTBF	1,688,338 hours	2,053,751 hours
Operating Temperature	32 to 130 °F (30 to 50 °C)
Storage Temperature	-14 to 158 °F (10 to 70 °C)
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% RH non-condensing
Dimensions	3.9 x 3.8 x 1.1 inches (100 x 98 x 28 mm)	6.3 x 4.0 x 1.1 inches (162 x 102 x 28 mm)
Weight	10.08 ounces (286 grams)	15.52 ounces (440 grams)
Certifications	FCC Class B ICES-003 Class B CE Class B C-Tick Class B VCCI Class B cUL CB

Adatok

Gyártói cikkszám:

DGS-108/E

EAN:

790069368240

Gyártó:

DLINK

EAN:

0790069368240

Rack-be szerelhető:

Nincs

Switch típus:

Fixed port

Menedzselhetőség:

Nem menedzselhető

Portok száma:

Port típusa:

100 Mbps

Switching kapacitás:

Menedzselhető:

Nincs

PoE (Power over Ethernet):

Nincs

Tömeg:

511,6 g/db
