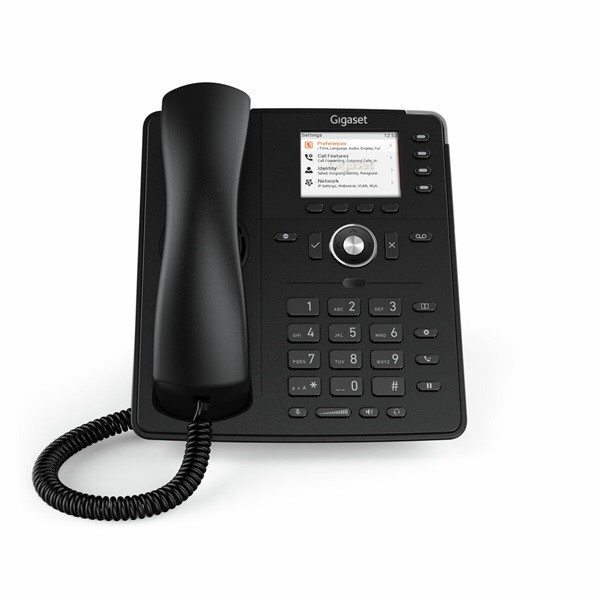

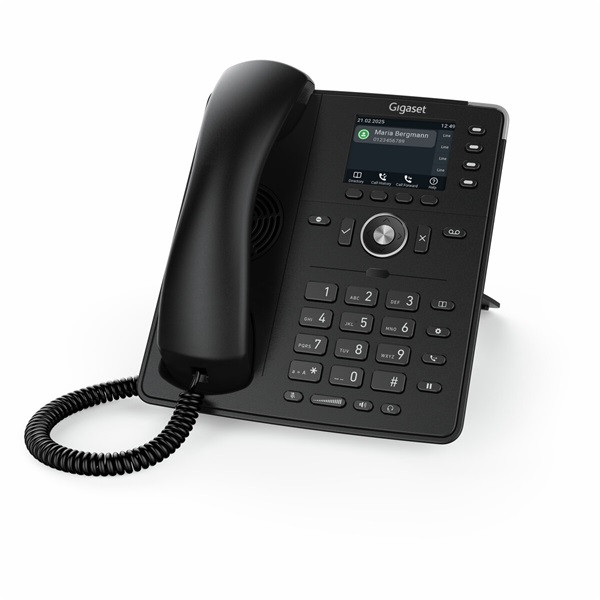

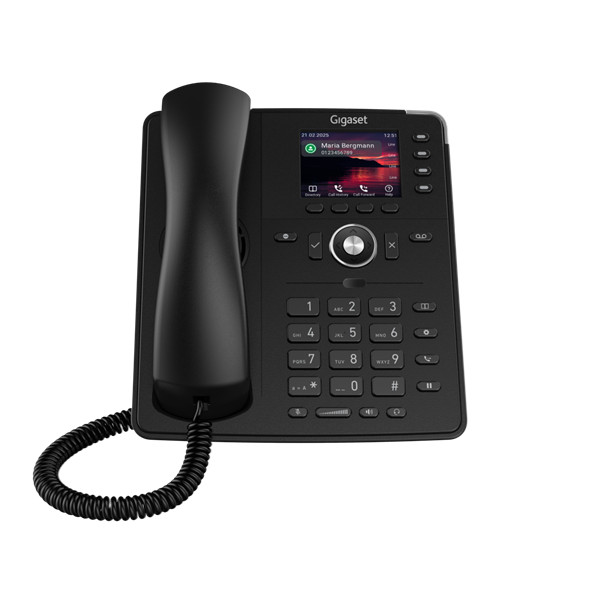

GIGASET P710 IP PRO IP asztali telefon, színes TFT kijelző, 4 funckiós LED billentyűk, HD hang, POE képes

Technical Specifications

Audio

Codecs

• G.711 A-law, u-law

• G.722 (wideband)

• G.723, G.726, G.729, GSM 6.10 (FR)

Ringtones • Built-in assignable ringtones

Audio quality • Acoustic echo cancellation for local echo (AEC) full duplex

Other features • Comfort noise generator (CNG)

• Voice activity detection (VAD)

Display

Size (inch) • 2.8”

Resolution • 320 x 240 pixel

Type • TFT liquid crystal display (LCD)

Keyboard

Keys • 38 hard keys in total

Keys • 12 keys (standard ITU telephone keypad)

Keys • 4 context sensitive function keys

Keys • 4 SmartLabel keys (with multicolor LED)

Keys • 8 dedicated functions keys: Ok, cancel, DND, message (with red

LED), directory, menu, transfer, hold

Keys • 5 dedicated audio keys: Mute, speakerphone, headset, volume +/-

(rocker)

Keys • 5-way navigation key

Network

specifications

Configuration

• SIP

• SDP

• RTP, RTCP

• DHCP, NTP

• LDAP

• HTTP / HTTPS / TFTP

• L2TP

• TLS V1.2

• SIP REFER method (RFC 3515)

• rport (RFC 3581)

• Secure web server / client (HTTPS)

• ENUM

• ICE

• STUN

• SIPS (SIP over TLS), SRTP, SRTCP

• 802.1X Authentication and EAPOL

• LLDP-MED, RTCP-XR

• Password-protected web interface

• Configuration and setup via menu-driven web user interface

• Configuration and setup via menu-driven phone user interface

IP

• Dual Stack IPv4 / IPv6

• VLAN (IEEE 802.1Q)

• OpenVPN

Provisioning

• Automatic loading of settings and firmware via HTTP / HTTPS /

TFTP

• DHCP Options 66/67

• Gigaset Redirect and Provisioning Environment (GRAPE) support

• Plug & Play (PnP) support

• Remote management via TR-069 / TR-069 Annex G (TR-111)

• SIP / PCAP trace

• Syslog

Connectivity

LAN connection

• 2x RJ45-8P8C Gigabit Ethernet port

• Power over Ethernet (PoE)

• IEEE 802.3af, class 2 / IEEE 802.3az (optional via software)

Headset connection • RJ9-4P4C socket (headset available separately)

Handset • RJ9-4P4C socket

• Hearing aid compatible (HAC) handset

Sensor • Hook switch sensor

Interoperability • Interoperable with all major IP PBX platforms

Phonebook

Contacts • LDAP (server-based directory)

• XML browser

Address book • Local directory with 1000 entries

Telephony

VoIP • 6 SIP identities / accounts

• Up to 6 simultaneous calls

Call groups • 3-way conferencing on the phone

Localization • Language, time, dial tone

Other features • Menu-driven user interface

• Multiple language support

Dial functions Functions

• Call diversion

• Caller identification (CLIP)

• Calling Line Identification Restriction (CLIR)

• Call waiting/swapping

• Call history lists for dialed, received, missed, rejected and

deflected calls

• Call completion (busy / unreachable) (if supported by PBX)

• Call park, call unpark (if supported by PBX)

• Speed dialing via function keys

• Hold

• Music on hold (if supported by PBX)

• Mute microphone

• Automatic redial on busy

• Redial (via dialed calls list)

• Auto-answer

• Blind and attended transfer

• Extension monitoring (Busy lamp field), call pickup (if supported

by PBX)

• Intercom

• Multicast paging

• URL dialing

• Local dial plan

• Client matter code (CMC) (if supported by PBX)

Dialing procedure • DTMF in-band / out-of-band / SIP-INFO

Call protection Blocking list • Call blocking (deny list, anonymous calls)

• DND mode (do not disturb)

Dial lock • Keyboard lock

Signaling &

display indications

Incoming calls • Red LED for call indication / message waiting

Power

Power supply • PoE or 5Vdc power adapter (optional accessory), 10 Watts

Input voltage • 5V DC (SELV)

Functions Wall mountable • Yes

Dimensions &

weights Desk phone

• Without foot stand: 205 mm × 185 mm × 40 mm

• With desk stand:

205 mm × 185 mm × 220 mm (high angle 46°)

205 mm × 185 mm × 200 mm (low angle 28°)

• Weight (approximately):

710 g (without footstand)

830 g (with footstand)

Ordering

information

Color • Black

Environmental

conditions

Ambient temperature • 0°C to 35°C (32°F to 95°F)

Storage temperature • -10°C to 45°C (14°F to 113°F)

Humidity • 5% to 95% (non-condensing)

Accessories

EHS adapter • Gigaset EHS Adapter

Power adapter • Gigaset 5Vdc power adapter

Scope of delivery

1x • Desk phone

1x • Foot stand

1x • Corded handset

1x • Quick Installation Guide
