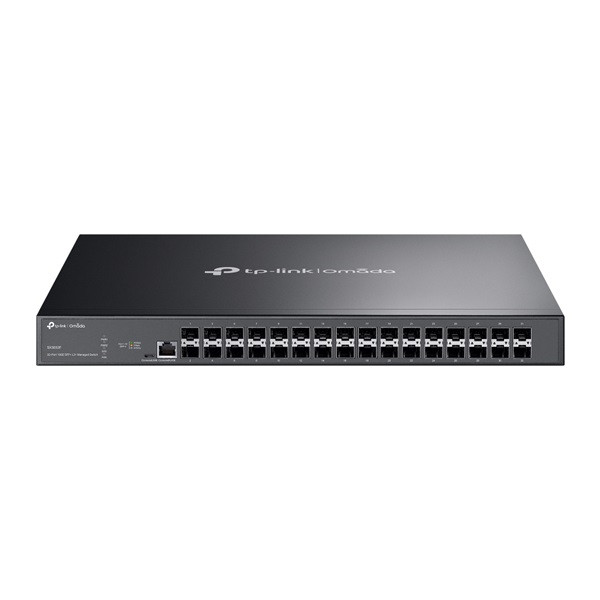

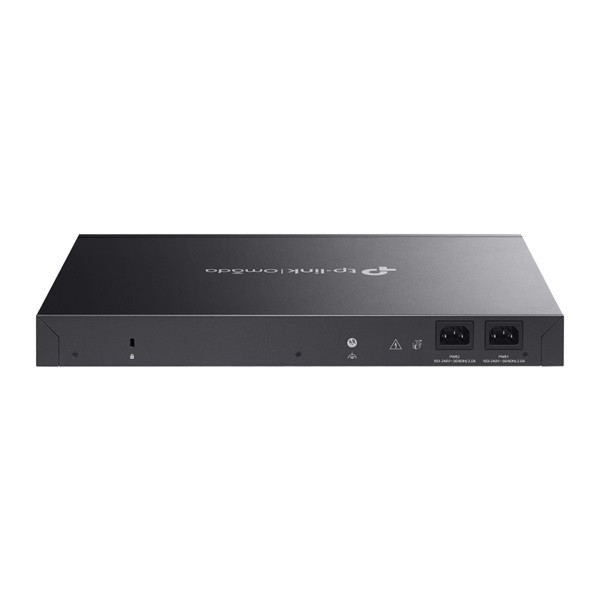

TP-LINK Switch 32x10Gbps SFP+ + 2xkonzol port, Menedzselhető Rackes, SX3032F

Name: TP-LINK Switch 32x10Gbps SFP+ + 2xkonzol port, Menedzselhető Rackes, SX3032F
Brand: TP-LINK
SKU: 360152
Price: 512390 HUF
Availability: InStock

Cikkszám:

360152

TP-LINK Switch 32x10Gbps SFP+ + 2xkonzol port, Menedzselhető Rackes, SX3032F

Raktáron

TP-LINK Switch 32x10Gbps SFP+ + 2xkonzol port, Menedzselhető Rackes, SX3032F

Gyártó:

TP-LINK

Garancia:

60 hónap

További adatok

512 390 Ft

Részletek

CARACTERÍSTICAS DE HARDWARE
Interfaz	• 32× 10G SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port
Cantidad de Ventiladores	1 ???
Bloqueo de Seguridad Físico	?
Fuente de Alimentación	• 1+1 Redundant Power Supply (fixed) • 100-240 V AC~50/60 Hz
Dimensiones	17.3×13.0×1.7 in (440×330×44 mm)
Montaje	Rack Mountable
Consumo de Potencia Máximo	32.74 W (220 V / 50 Hz) ???
Disipación máxima de calor	111.71 BTU/hr (220 V / 50 Hz) ???

RENDIMIENTO
Capacidad de Conmutación	640 Gbps
Tasa de Reenvío de Paquetes	476.16 Mpps ???
Tabla de Direcciones MAC	32 K ???
Memoria del Buffer de Paquete	24 Mbit ???
Jumbo Frame	9 KB ???

CARACTERÍSTICAS DE SOFTWARE
Calidad de Servicio	• 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR • Bandwidth Control: Port/Flow-based Rating Limiting • Smoother Performance • Action for Flows: QoS remark (802.1P Remark, DSCP Remark) ???
Características L2 y L2+	• 128 IP Interfaces: Support IPv4/IPv6 Interface • Static Routing: 48 IPv4/IPv6 Static Routes • Static ARP: 128 static entries • 512 ARP Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay • DHCP L2 Relay • Link Aggregation • Spanning Tree Protocol • Loopback Detection • 802.3x Flow Control • Mirroring ???
Multicast L2	• Supports 1000 (IPv4, IPv6) IGMP groups • IGMP Snooping • IGMP Authentication • Multicast VLAN Registration (MVR) • MLD Snooping • Multicast Filtering: 256 profiles and 16 entries per profile ???
Características Avanzadas	• Automatic Device Discovery^† • Batch Configuration^† • Batch Firmware Upgrading^† • Intelligent Network Monitoring^† • Abnormal Event Warnings^† • Unified Configuration^† • Reboot Schedule^† ISP Features*: • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • PPPoE ID Insertion • ERPS • 802.3ah Ethernet Link OAM • DDM • sFlow ???
VLAN	• VLAN Group (802.1q VLAN): Max 4K VLAN Groups • 802.1Q Tagged VLAN • MAC VLAN: 30 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 12 • Private VLAN • GVRP • VLAN VPN (QinQ): Port-Based QinQ, Selective QinQ • Voice VLAN ???
Lista de Control de Acceso	• Time-based ACL • MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type • IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS • Combined ACL • Packet Content ACL • IPv6 ACL • Policy: Mirroring, Redirect, Rate Limit, QoS Remark • ACL applies to Port/VLAN ???
Seguridad	• IP-MAC-Port Binding - 512 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard • IPv6-MAC-Port Binding - 512 Entries - DHCPv6 Snooping - ND Detection - ND Snooping - IPv6 Source Guard • DoS Defend • Static/Dynamic Port Security: Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode • 802.1X - Port base authentication - MAC-based authentication - VLAN Assignment - MAB - Guest VLAN - Radius authentication and accountability support • AAA (including TACACS+) • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC-based access control ???
IPv6	• IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 ACL • IPv6 Interface • Static IPv6 Routing • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP ???
MIBs	• MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB ???

GESTIÓN
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Gestión Centralizada	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Acceso a la nube	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Aprovisionamiento sin contacto	Yes. Requires the use of Omada Cloud-Based Controller.
Funciones de gestión	• Web-based GUI • Command Line Interface (CLI) through the console port, telnet • SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • Password Recovery • SNTP • System Log

Otros
Certificaciones	CE, FCC, RoHS
Contenido del Paquete	• SX3032F Switch • 2× Power Cords • Quick Installation Guide • Rackmount Kit • Rubber Feet
Requisitos del sistema	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Factores Ambientales	• Operating Temperature: 0–45 ? (32–113 ?); • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing ???

Adatok

Gyártói cikkszám:

SX3032F

EAN:

4895252504477

Gyártó:

TP-LINK

EAN:

4895252504477

Rack-be szerelhető:

Van

Switch típus:

Modular

Menedzselhetőség:

Teljes

Portok száma:

Port típusa:

10Gb SFP+

Switching kapacitás:

640

Menedzselhető:

Van

PoE (Power over Ethernet):

Nincs

Áteresztő képesség:

476,16

SFP port:

Routing / Switching:

Layer 2

Tömeg:

6,21 kg/db
