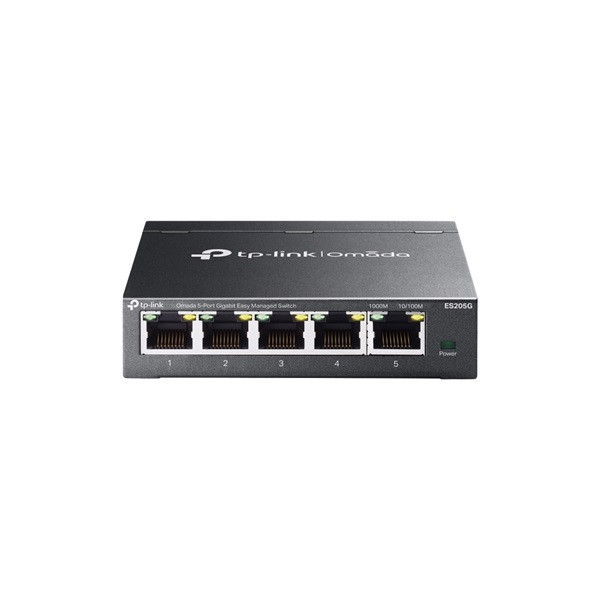

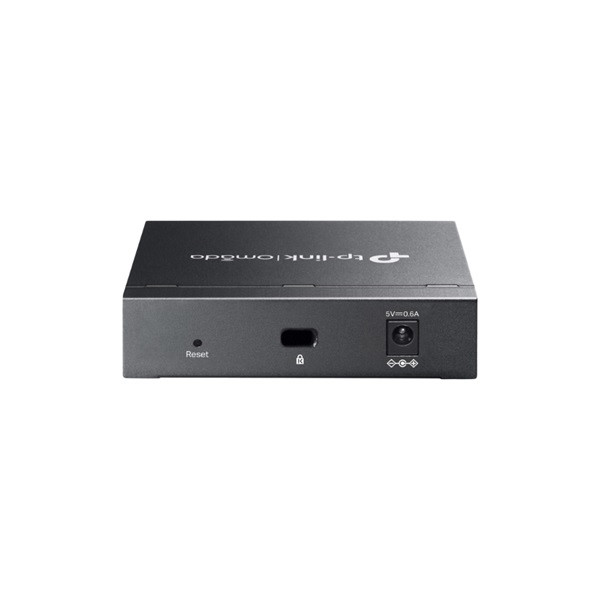

TP-LINK Switch 5x1000Mbps Fémházas Easy Smart (Omada), ES205G

Name: TP-LINK Switch 5x1000Mbps Fémházas Easy Smart (Omada), ES205G
Brand: TP-LINK
SKU: 377925
Price: 15290 HUF
Availability: InStock

Cikkszám:

377925

TP-LINK Switch 5x1000Mbps Fémházas Easy Smart (Omada), ES205G

Raktáron

TP-LINK Switch 5x1000Mbps Fémházas Easy Smart (Omada), ES205G

Gyártó:

TP-LINK

Garancia:

60 hónap

További adatok

15 290 Ft

Részletek

HARDWARE FEATURES
Interface	• 5× 10/100/1000 Mbps RJ45 Ports • AUTO Negotiation/AUTO MDI/MDIX
Fan Quantity	Fanless
Installation	• Desktop • Wall Mount
Physical Security Lock	?
Power Supply	External DC Power Adapter (Output: 5 VDC/ 0.6 A)
Dimensions ( W x D x H )	3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)
Surge Protection	±6kV

PERFORMANCE
Switching Capacity	10 Gbps
Packet Forwarding Rate	7.4 Mpps
MAC Address Table	8 K
Packet Buffer Memory	4 Mbits
Jumbo Frame	15 KB

SOFTWARE FEATURES
Quality of Service	• Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control^?
L2 Features	• Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP
L2 Multicast	• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave
VLAN	• MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID
Transmission Method	Store-And-Forward

Management Features
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	• Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery^† • Batch Configuration^† • Batch Firmware Upgrading^† • Unified Configuration^†

OTHERS
Certification	FCC, CE, RoHS
Package Content	• ES205G • Power Adapter • Installation Guide • Rubber Feet
Environment	• Operating Temperature: 0?~40? (32?~104?) • Storage Temperature: -40?~70? (-40?~158?) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing

Adatok

Gyártói cikkszám:

ES205G

EAN:

8885020620917

Gyártó:

TP-LINK

EAN:

8885020620917

Rack-be szerelhető:

Van

Switch típus:

Modular

Menedzselhetőség:

Web

Portok száma:

Port típusa:

1Gb Fiber

Switching kapacitás:

Menedzselhető:

Van

PoE (Power over Ethernet):

Nincs

Áteresztő képesség:

7,4

Tömeg:

460 g/db
