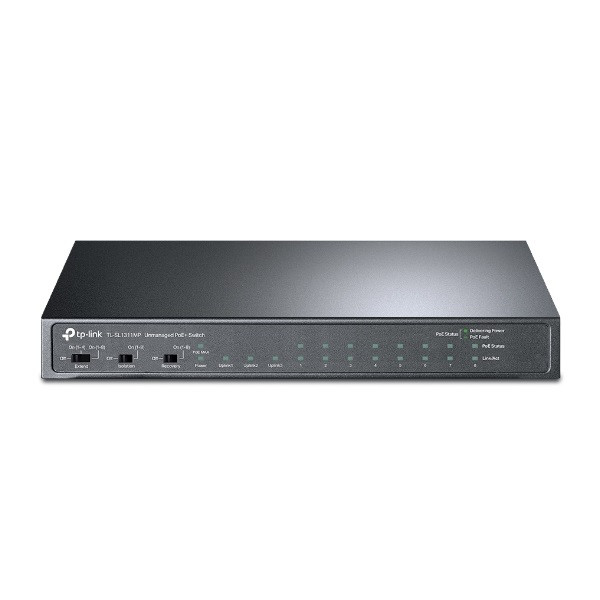

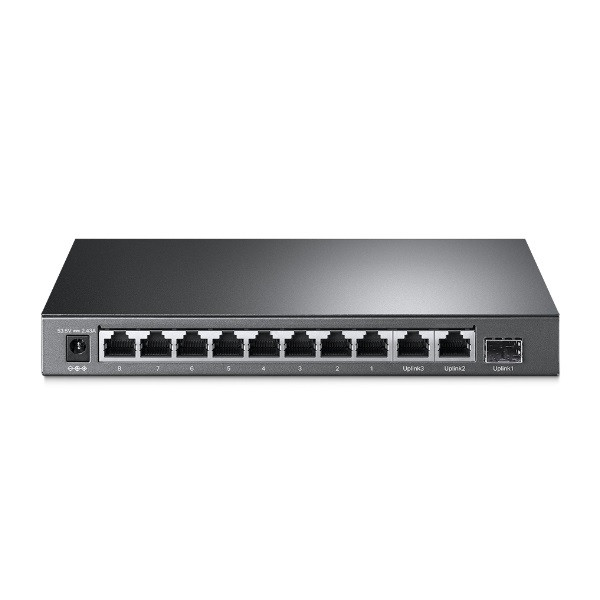

TP-LINK Switch 8x100Mbps (8xPOE+) + 2x1000Mbps + 1xGigabit SFP, TL-SL1311MP

Name: TP-LINK Switch 8x100Mbps (8xPOE+) + 2x1000Mbps + 1xGigabit SFP, TL-SL1311MP
Brand: TP-LINK
SKU: 301726
Price: 42490 HUF
Availability: InStock

Cikkszám:

301726

TP-LINK Switch 8x100Mbps (8xPOE+) + 2x1000Mbps + 1xGigabit SFP, TL-SL1311MP

Raktáron

TP-LINK Switch 8x100Mbps (8xPOE+) + 2x1000Mbps + 1xGigabit SFP, TL-SL1311MP

Gyártó:

TP-LINK

Garancia:

60 hónap

További adatok

42 490 Ft

Részletek

Interface	• 8× 10/100 Mbps 802.3af/at PoE+ Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port • AUTO Negotiation • AUTO MDI/MDIX
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
Physical Security Lock	Yes
External Power Supply	External Power Adapter (Output: 53.5VDC / 2.43A)
Packet Forwarding Rate	5.6544 Mpps
PoE Ports (RJ45)	• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8 • Power Supply: 124 W
Mac Address Table	2K
Jumbo Frame	16 KB
Switching Capacity	7.6 Gbps
Dimensions ( W x D x H )	8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Max Power Consumption	• 5.95 W (220/50 Hz. no PD connected) • 140.92 W (220/50 Hz. with 124 W PD connected)
Max Heat Dissipation	• 20.29 BTU/h (no PD connected) • 480.54 BTU/h (220/50 Hz. with 124 W PD connected)

SOFTWARE FEATURES
Transmission Method	Store-And-Forward
Advanced Functions	• Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission) • Isolation Mode Button (Ports 1–8) • PoE Auto Recovery Button (Ports 1–8) • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

OTHERS
Certification	FCC, CE, RoHS
Package Contents	• TL-SL1311MP • Power Adapter • Installation Guide
Environment	• Operating Temperature: 0–40 ? (32–104 ?) • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

Adatok

Gyártói cikkszám:

TL-SL1311MP

EAN:

6935364006259

Gyártó:

TP-LINK

EAN:

6935364006259

Rack-be szerelhető:

Nincs

Switch típus:

Fixed port

Menedzselhetőség:

Nem menedzselhető

Portok száma:

Port típusa:

100 Mbps;1Gb Réz;1Gb Fiber

Switching kapacitás:

7,6

Menedzselhető:

Nincs

PoE (Power over Ethernet):

Van

Áteresztő képesség:

5,6544

SFP port:

Tömeg:

550 g/db
