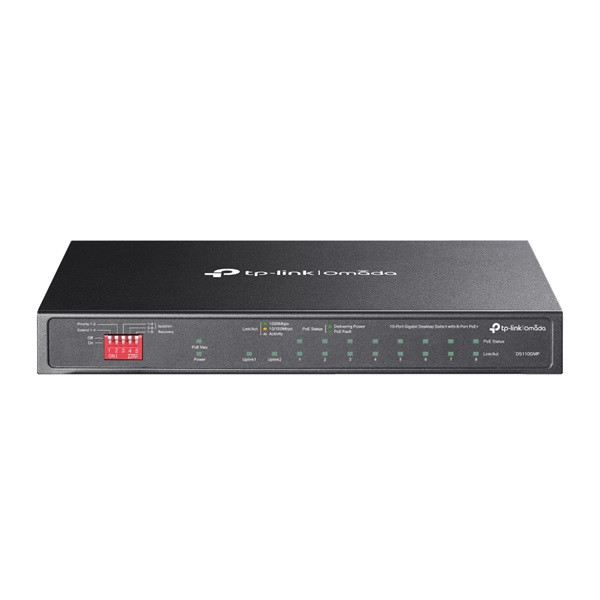

TP-LINK Switch 9x1000Mbps(8xPOE+) + 1xGigabit SFP Fémházas (Omada), DS110GMP

Name: TP-LINK Switch 9x1000Mbps(8xPOE+) + 1xGigabit SFP Fémházas (Omada), DS110GMP
Brand: TP-LINK
SKU: 356534
Price: 80590 HUF
Availability: InStock

Cikkszám:

356534

TP-LINK Switch 9x1000Mbps(8xPOE+) + 1xGigabit SFP Fémházas (Omada), DS110GMP

Raktáron

TP-LINK Switch 9x1000Mbps(8xPOE+) + 1xGigabit SFP Fémházas (Omada), DS110GMP

Gyártó:

TP-LINK

Garancia:

60 hónap

További adatok

80 590 Ft

Részletek

HARDWARE FEATURES
Interface	• 9× 10/100/1000 Mbps RJ45 Ports • 1× 1000 Mbps Combo SFP/RJ45 Port • AUTO Negotiation • AUTO MDI/MDIX
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100? STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100? STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100? STP (maximum 100m)
Fan Quantity	Fanless
Physical Security Lock	Yes
External Power Supply	External Power Adapter (Output: 53.5VDC / 2.43A)
Packet Forwarding Rate	14.88 Mpps
PoE Ports (RJ45)	• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8 • Power Supply: 123 W
Mac Address Table	4K
Jumbo Frame	16 KB
Switching Capacity	20 Gbps
Dimensions ( W x D x H )	8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Max Power Consumption	• 7.93 W (220V / 50Hz with no PD connected) • 141.40 W (220V / 50Hz with 123 W PD connected)
Max Heat Dissipation	• 27.04 BTU/h (220V / 50Hz with no PD connected) • 482.17 BTU/h (220V / 50Hz with 123 W PD connected)

SOFTWARE FEATURES
Transmission Method	Store-And-Forward
Advanced Functions	• Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode: Ports 1–4 • Priority Mode: Ports 1–2 • Isolation Mode: Ports 1–4/5-8 • PoE Auto Recovery: Ports 1-8 • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode

OTHERS
Certification	FCC, CE, RoHS
Package Contents	• DS110GMP • Power Adapter • Installation Guide
Environment	• Operating Temperature: 0–40 ? (32–104 ?) • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

Adatok

Gyártói cikkszám:

DS110GMP

EAN:

4895252507768

Gyártó:

TP-LINK

EAN:

4895252507768

Rack-be szerelhető:

Nincs

Switch típus:

Fixed port

Menedzselhetőség:

Nem menedzselhető

Portok száma:

Port típusa:

1Gb Réz

Switching kapacitás:

Menedzselhető:

Nincs

PoE (Power over Ethernet):

Van

Áteresztő képesség:

14,88

SFP port:

Tömeg:

1,62 kg/db
