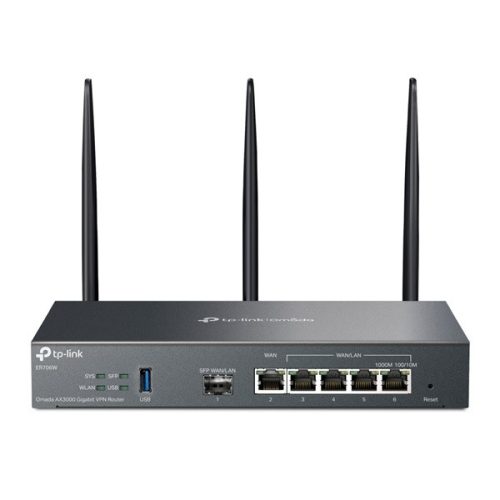

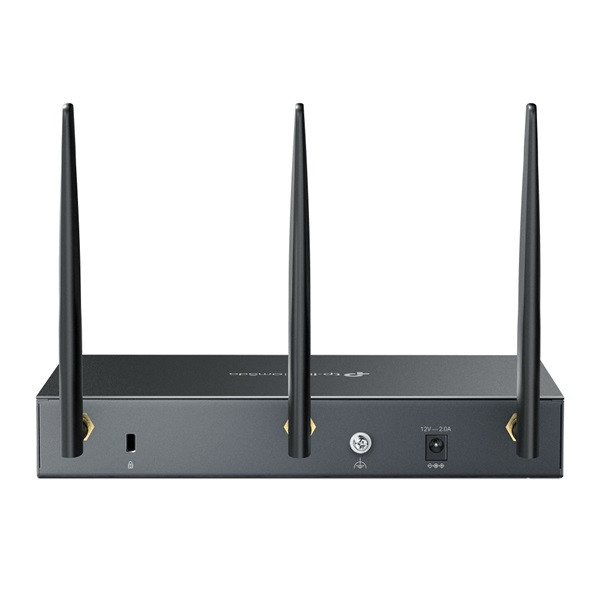

TP-LINK Vezetékes Omada AX3000 VPN Router 1xWAN(1000Mbps) + 4xLAN(1000Mbps) + 1xSFP + 1xUSB3.0, ER706W

79 390 Ft

TP-LINK Vezetékes Omada AX3000 VPN Router 1xWAN(1000Mbps) + 4xLAN(1000Mbps) + 1xSFP + 1xUSB3.0, ER706W

Name: TP-LINK Vezetékes Omada AX3000 VPN Router 1xWAN(1000Mbps) + 4xLAN(1000Mbps) + 1xSFP + 1xUSB3.0, ER706W
Brand: TP-LINK
SKU: 344577
Price: 79390 HUF
Availability: InStock

Cikkszám:

344577

TP-LINK Vezetékes Omada AX3000 VPN Router 1xWAN(1000Mbps) + 4xLAN(1000Mbps) + 1xSFP + 1xUSB3.0, ER706W

Raktáron

TP-LINK Vezetékes Omada AX3000 VPN Router 1xWAN(1000Mbps) + 4xLAN(1000Mbps) + 1xSFP + 1xUSB3.0, ER706W

Gyártó:

TP-LINK

Garancia:

60 hónap

További adatok

79 390 Ft

Részletek

HARDVER JELLEMZŐK
Csatlakozások	• 1 Gigabit SFP WAN/LAN Port • 1 Gigabit WAN Port • 4 Gigabit LAN/WAN Ports • 1 USB3.0 (supports USB LTE dongle and USB Storage)
Gomb	Reset Button
Hálózati tápegység	12VDC / 2A Power Adapter
Wi-Fi Frequency & Signal Rate	• 2.4 GHz: 574 Mbps • 5 GHz: 2402 Mbps (HE160)
Flash	128 MB NAND
DRAM	512 MB DDR4
Méretek (Sz x Mé x Ma)	8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included)
Antenna	• 2.4 GHz: 2x 3 dBi dual-band detachable antennas • 5 GHz: 3x 4.5 dBi dual-band detachable antennas
Felszerelés	Desktop/Wall-mounting
Max. áramfelvétel	• EU: 16.8W (with USB 3.0 connected), 11.8W (without USB 3.0 connected) • US: 22.7W (with USB 3.0 connected) 18.2W (without USB 3.0 connected)

MŰKÖDÉSI JELLEMZŐK
GRE	• Unencrypted: 624.2Mbps • Encrypted: 301.5Mbps
WireGuard VPN	393.5Mbps
Egyidejű munkamenet	150,000
New Sessions /Second	5,100
NAT (Static IP)	937.2 Mbps / 936.1Mbps
NAT(DHCP)	945.8 Mbps / 940.6Mbps
NAT(PPPoE)	942.9 Mbps / 942.9Mbps
NAT (L2TP)	837.4 Mbps / 881.5Mbps
NAT (PPTP)	803.0 Mbps / 910.5 Mbps
IPsec VPN Throughput	• ESP-SHA1-AES256: 646.9Mbps • ESP-SHA256-AES256: 642.8Mbps • ESP-SHA384-AES256: 648.9Mbps • ESP-SHA512-AES256: 658.4 Mbps
OpenVPN	129.3Mbps
L2TP VPN Throughput	• Unencrypted: 1034.0 Mbps • Encrypted: 570.0 Mbps
PPTP VPN Throughput	• Unencrypted: 1165.0 Mbps • Encrypted: 209.0 Mbps
SSL VPN Throughput	126.7Mbps
66 Byte Packet forwarding rate	1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate	81,274 pps / 91,275 pps

VEZETÉK NÉLKÜLI JELLEMZŐK
További funkciók	• Seamless Roaming • Mesh (with EAP that supports Mesh) • OFDMA • Beamforming • MU-MIMO • Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
Vendéghálózat	Support

ALAPFUNKCIÓK
WAN kapcsolati típus	• Static IP • Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP
MAC klónozása	Modify WAN Address
DHCP	• DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP
IPv6	StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

HALADÓ FUNKCIÓK
ACL	IP/Port/Protocol/Domain Name Filtering
Advanced Routing	• Static Routing • Policy Routing • RIP^† • OSPF^†
Sávszélesség-szabályozás	IP-Based Bandwidth Control
Load Balance	• Intelligent Load Balance • Application Optimized Routing • Link Backup(Timing, Failover) • Online Detection
NAT	• One-to-One NAT • Multi-Net NAT • Port Forwarding • Port Triggering^† • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP
Session Limit	IP-Based Session Limit

VPN
SSL VPN	50 Tunnels
IPsec VPN	• 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
PPTP VPN	• PPTP VPN Server • PPTP VPN Client (10)^? • 50 Tunnels • PPTP with MPPE Encryption
L2TP VPN	• L2TP VPN Server • L2TP VPN Client (10)^? • 50 Tunnels • L2TP over IPSec
OpenVPN	• OpenVPN Server • OpenVPN Client (5)^? • 55 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode

BIZTONSÁG
Szűrés	• Web Group Filtering^† • URL Filtering • Web Security^†
ARP-s támadás elleni védelem	• Sending GARP Packets • ARP Scanning^† • IP-MAC Binding
Hálózati támadások elleni védelem	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN
Hozzáférés-vezérlés	Source/Destination IP Based Access Control

HITELESÍTÉS
Webes hitelesítés	• No Authentication • Simple Password^§ • Hotspot (Local User / Voucher^§ / SMS^§ / Radius^§) • External Radius Sever • External Portal Sever^§ • LDAP

VEZÉRLÉS
Omada App	Yes.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Yes.
Szolgáltatás	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Kezelés	• Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute)^† • NTP Synchronize^† • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support
Zero-Touch Provisioning	Yes. Require the use of Omada Cloud-Based Controller.
Management Features	• Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration

EGYÉB JELLEMZŐK
Tanúsítványok	CE, FCC, RoHS
Csomagolás tartalma	• ER706W • Power Adapter • Quick Installation Guide
Rendszerkövetelmény	• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux
Környezet	• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing

Standards and Protocols	• IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Interface	• 1 Fixed Gigabit WAN Port • 1 Fixed Gigabit LAN Port • 3 Changeable Gigabit WAN/LAN Ports
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100? STP (Max 100m) • 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100? STP (Max 100m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Button	Reset Button
Power Supply	External 9V/0.9A DC Adapter
Flash	SPI 16MB
DRAM	128 MB
LED	PWR, SYS, WAN, LAN
Dimensions ( W x D x H )	6.2 × 4.0 × 1.0 in. (158 × 101 × 25mm)

PERFORMANCE
Concurrent Session	25,000
IPsec VPN Throughput	41.5 Mbps

BASIC FUNCTIONS
WAN Connection Type	• Static/Dynamic IP • PPPoE • PPTP • L2TP
MAC Clone	Modify WAN/LAN MAC Address^†
DHCP	• DHCP Server/Client • DHCP Address Reservation • Multi-net DHCP* • Multi-IP Interfaces*
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy

ADVANCED FUNCTIONS
ACL	IP/Port/Protocol/Domain Name Filtering
Advanced Routing	• Static Routing • Policy Routing
Bandwidth Control	• IP/Port-based Bandwidth Control • Guarantee & Limited Bandwidth
Load Balance	• Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing^§, Failover) • Online Detection
NAT	• One-to-One NAT^§ • Multi-Net NAT • Virtual Server • Port Triggering^§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Security	• SPI Firewall • VPN Passthrough • FTP/H.323/PPTP/SIP/IPsec ALG • DoS Defence, Ping of Death • Local Management
Session Limit	IP-based Session Limit

VPN
IPsec VPN	• 20 IPsec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IKEv1/v2* • MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) *These functions require the use of Omada Hardware Controller, Software Controller, or Cloud-Based Controller
PPTP VPN	• PPTP VPN Server • 10 PPTP VPN Clients • 16 Tunnels • PPTP with MPPE Encryption
L2TP VPN	• L2TP VPN Server • 10 L2TP VPN Clients • 16 Tunnels • L2TP over IPSec
OpenVPN	• OpenVPN Server* • 10 OpenVPN Clients* • 16 OpenVPN Tunnels*

SECURITY
Filtering	WEB Group Filtering^§ URL Filtering Web Security^§
ARP Inspection	• Sending GARP Packets^§ • ARP Scanning^§ • IP-MAC Binding^§
Attack Defense	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN
Access Control	Source/Destination IP Based Access Control

AUTHENTICATION
Web Authentication	• No Authentication • Simple Password* • Hotspot(Local User / Voucher* / SMS* / Radius) • External Radius Sever • External Portal Sever • Facebook*

MANAGEMENT
Omada App	Yes
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance	• Time Setting • Diagnostic • Firmware Upgrade • Factory Defaults/Reboot • Backup&Restore • System Log • Remote Management • Statistics • Controller Settings • SNMP
Management Features	• Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration • ZTP (Zero-Touch Provisioning)**

OTHERS
Certification	CE, FCC, RoHS
Package Contents	• Gigabti VPN Router ER605 • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide
Environment	• Operating Temperature: 0–40 ? (32–104 ?); • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

Adatok

Gyártói cikkszám:

ER706W

EAN:

4895252500691

Gyártó:

TP-LINK

EAN:

4895252500691

Portok száma:

Frekvencia:

2.4 GHz és 5 GHz

Tömeg:

1,5 kg/db
