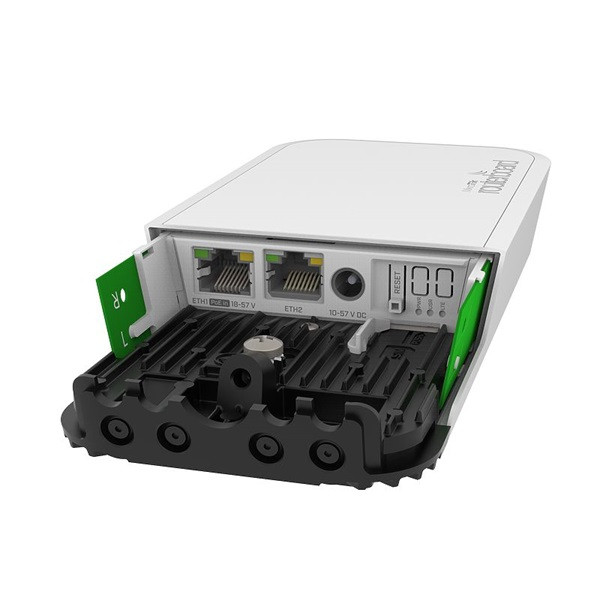

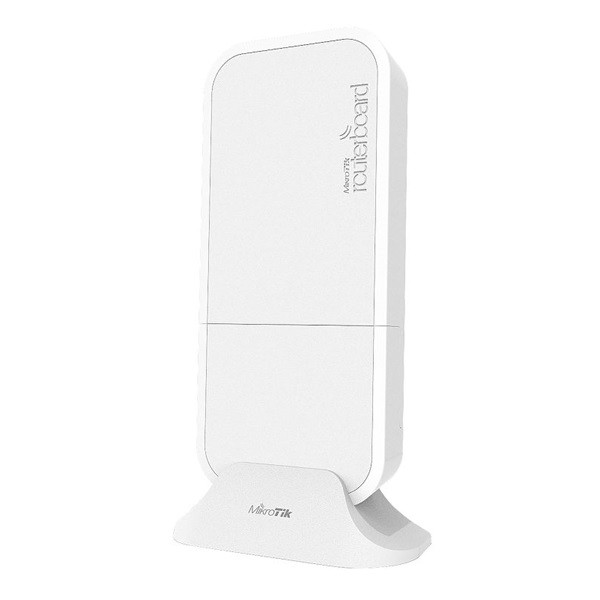

MIKROTIK Wireless Access Point DualBand, 2x1000Mbps, 1167Mbps, kültéri - RBWAPGR-5HACD2HND&R11E-LTE6

88 690 Ft

MIKROTIK Wireless Access Point DualBand, 2x1000Mbps, 1167Mbps, kültéri - RBWAPGR-5HACD2HND&R11E-LTE6

Name: MIKROTIK Wireless Access Point DualBand, 2x1000Mbps, 1167Mbps, kültéri - RBWAPGR-5HACD2HND&R11E-LTE6
Brand: MIKROTIK
SKU: 282488
Price: 88690 HUF
Availability: InStock

Cikkszám:

282488

MIKROTIK Wireless Access Point DualBand, 2x1000Mbps, 1167Mbps, kültéri - RBWAPGR-5HACD2HND&R11E-LTE6

Raktáron

MIKROTIK Wireless Access Point DualBand, 2x1000Mbps, 1167Mbps, kültéri - RBWAPGR-5HACD2HND&R11E-LTE6

Gyártó:

MIKROTIK

Garancia:

12 hónap

További adatok

88 690 Ft

Részletek

Specifications

Details
Product code	RBwAPGR-5HacD2HnD&R11e-LTE6
Architecture	ARM 32bit
CPU	IPQ-4018
CPU core count	4
CPU nominal frequency	716 MHz
License level	4
Size of RAM	128 MB
Storage size	16 MB
Storage type	FLASH
Tested ambient temperature	-30°C to 60°C

Powering

Details
PoE in	802.3af/at
PoE in input Voltage	18-57 V
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	10-57 V
Max power consumption	16 W
Max power consumption without attachments	10 W

Mobile

Details
2G Category	Class12
2G bands	2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category	R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands	1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category	6 (300Mbit/s Downlink, 50Mbit/s Uplink)
LTE FDD bands	1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
LTE TDD bands	38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)

Wireless

Details
AC speed	AC1200
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	2.5
Wireless 2.4 GHz chip model	IPQ-4018
Wireless 2.4 GHz generation	Wi-Fi 4
Wireless 5 GHz Max data rate	867 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n/ac
Antenna gain dBi for 5 GHz	2.5
Wireless 5 GHz chip model	IPQ-4018
Wireless 5 GHz generation	Wi-Fi 5

Ethernet

Details
10/100/1000 Ethernet ports	2

Peripherals

Details
Number of SIM slots	1 Modem (Micro SIM)
MiniPCI-e slots	1

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes

Certification & Approvals

Details
Certification	CE/RED, FCC, IC, EAC, ROHS

Wireless specifications

2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s	22	-100
11MBit/s	22	-94
6MBit/s	23	-95
54MBit/s	19	-78
MCS0	23	-95
MCS7	18	-73

5 GHz	Transmit (dBm)	Receive Sensitivity
6MBit/s	24	-95
54MBit/s	20	-78
MCS0	24	-95
MCS7	19	-73
MCS9	17	-68

Included parts

Adatok

Gyártói cikkszám:

RBWAPGR-5HACD2HND&R11E-LTE6

EAN:

5996409357355

Gyártó:

MIKROTIK

EAN:

5996409357355

Frekvencia:

2.4 GHz és 5 GHz

Szabvány:

802.11b, 802.11g, 802.11n, 802.11ac

Tömeg:

600 g/db
