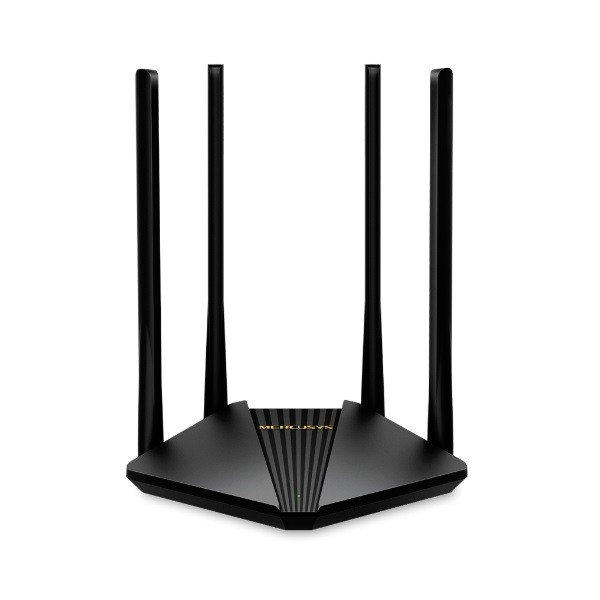

MERCUSYS Wireless Router Dual Band AC1200 1xWAN(1000Mbps) + 2xLAN(1000Mbps), MR30G

IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz

2.4 GHz, 5 GHz

867 Mbps (5 GHz) + 300 Mbps (2.4 GHz), compatible
with 11ac/a/b/g/n Wi-Fi standards

11g 6Mbps: -96dBm
11g 54Mbps: -78dBm
11n HT40 MCS7: -74dBm
11n HT20 MCS7: -71dBm
11a 6Mbps: -97dBm
11a 54Mbps: -79dBm
11ac VHT20 MCS8: -74dBm
11ac VHT40 MCS9: -70dBm
11ac VHT80 MCS9: -65dBm

2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)

WPA-PSK / WPA2-PSK

Router Mode, Access Point Mode

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Access Control
Local Management
Remote Management

Server, DHCP Client List

Port Forwarding, Port Triggering, UPnP, DMZ

SPI Firewall, IP and MAC Address Binding

2.4 GHz Guest Network, 5 GHz Guest Network

6.3 × 5.0 × 1.5 in (159.7 × 125.9 × 37.1 mm)

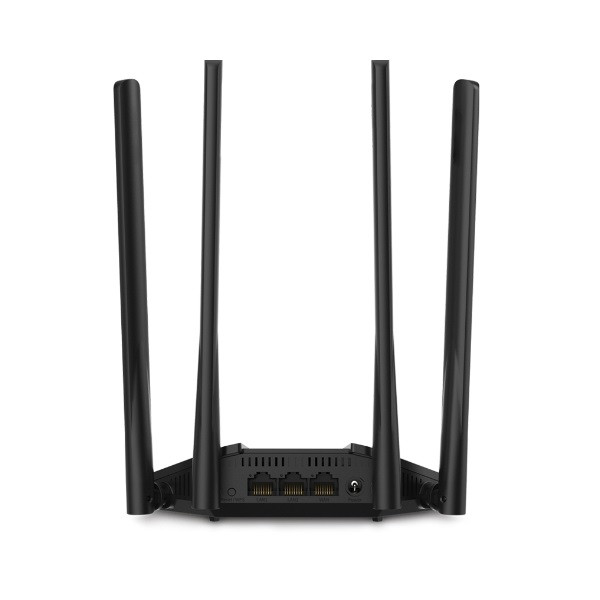

1× Gigabit WAN Port + 2× Gigabit LAN Ports

WPS/Reset Button

4× 5 dBi Fixed Omni-Directional Antennas

• AC1200 Wireless Dual Band Gigabit Router (MR30G)
• Power Adapter
• Quick Installation Guide
• RJ45 Ethernet Cable

• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
