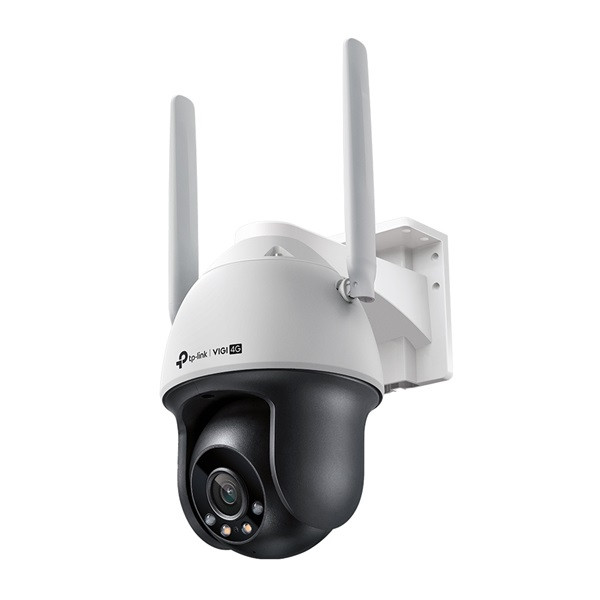

TP-LINK IP & Wi-Fi-s Kamera kültéri éjjellátó 4megapixel, 4mm Objektív 3G/4G SIM slot, VIGI C540-4G(4MM)

76 190 Ft

TP-LINK IP & Wi-Fi-s Kamera kültéri éjjellátó 4megapixel, 4mm Objektív 3G/4G SIM slot, VIGI C540-4G(4MM)

Name: TP-LINK IP & Wi-Fi-s Kamera kültéri éjjellátó 4megapixel, 4mm Objektív 3G/4G SIM slot, VIGI C540-4G(4MM)
Brand: TP-LINK
SKU: 350835
Price: 76190 HUF
Availability: InStock

Cikkszám:

350835

TP-LINK IP & Wi-Fi-s Kamera kültéri éjjellátó 4megapixel, 4mm Objektív 3G/4G SIM slot, VIGI C540-4G(4MM)

Raktáron

TP-LINK IP & Wi-Fi-s Kamera kültéri éjjellátó 4megapixel, 4mm Objektív 3G/4G SIM slot, VIGI C540-4G(4MM)

Gyártó:

TP-LINK

Garancia:

36 hónap

További adatok

76 190 Ft

Részletek

KAMERA
Képérzékelő	1/3.06” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Min. szükséges megvilágítás	0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto

LENS
Type	Fixed Focal Lens
Focal Length	4 mm
Aperture	F1.6
FOV	Horizontal FOV: 80°, Vertical FOV: 43°, Diagonal FOV: 94°
Lens Mount	M12*0.5
DORI Distance	Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft)

PTZ
Pan/tilt Range	Pan: 0° to 348°, Tilt: 0° to 120°
Pan/tilt Speed	• Pan Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s • Tilt Speed: Configurable from 8° to 44°/s, Preset Speed 44°/s
Manual Control Speed	Configurable from 8° to 35°/s
Presets	300
Patrol Scan	8 patrols, up to 8 presets for each patrol
Power-off Memory	Yes; Auto restore to previous PT and lens status after power failure
Park Action	Yes; Preset; Patrol Scan
3D Positioning	Yes

ANGLE ADJUSTMENT (MANUAL)
Range	• Pan: 0° to 348° • Tilt: 0° to 120°

ILLUMINATOR
IR LED	• Quantity: 2 • Range: 30m • Wavelength: 850nm
White LED	• Quantity: 2 • Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off

VIDEO
Max. Resolution	2560 X 1440
Main Stream	• Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream	• Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	• Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	• Main Stream: 256 Kbps to 3 Mbps • Sub-Stream: 64 Kbps to 512 Kbps

Image Settings	• Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure, WDR, • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software • Rotation (90°/270°)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	DWDR
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes

HANG
Hangkommunikáció	Two-Way Audio
Hangbemenet	Yes
Hangkimenet	Yes
Hangtömörítés	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)

HÁLÓZAT
Szabvány	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF	Yes
API	ONVIF
Simultaneous Live View	2 Main Streams & 2 Sub-Streams
Client	VIGI App, VIGI Security Manager, Web UI
Web Browser	• Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above
Cloud	Yes
Biztonság	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

4G
Standard	LTE-TDD/LTE-FDD/WCDMA
SIM Type	Nano SIM
Category	4
Frequency	• LTE-FDD: B 1/3/5/7/8/20/28 • LTE-TDD: B 38/40/41 • WCDMA: B 1/5/8

FIGYELMEZTETÉSI ÉS ESEMÉNYKEZELÉSI VEZÉRLÉS
Smart Event	• Human & Vehicle Classification • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • People Detection • Vehicle Detection
Basic Event	• Motion Detection • Video Tampering Detection • Exception (Illegal Login)
Alarm Linkage	• Memory Card Video Recording • Message Push • Audible Warning • White Light Flashing
Linkage Method	N/A
Output Notification	Message Push

FIZIKAI KEZELŐFELÜLET
Hálózati csatlakozás	1 RJ45 10/100M Self-Adaptive Ethernet Port
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB

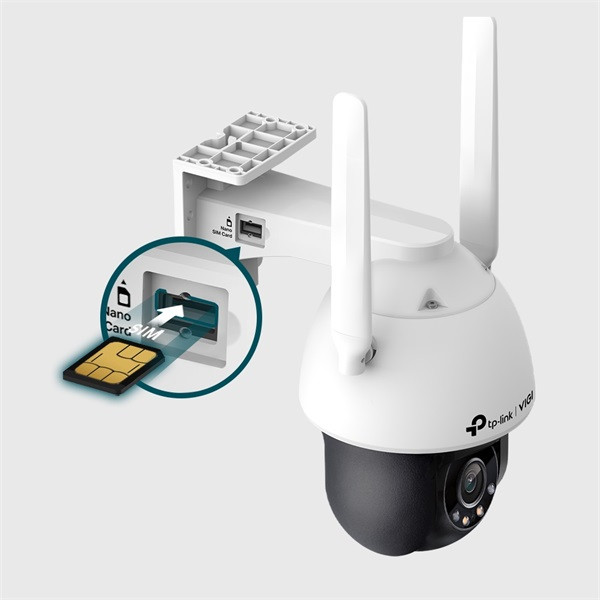

Built-in Nano-SIM Card Slot	Yes
Built-in Microphone	Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker	Yes
Audio	N/A

ÁLTALÁNOS
Operating Temperature	-30–60 °C
Storage Temperature	-40–60 °C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Csomagolás tartalma	• VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories • Power Adapter
Material	Plastic
Net Weight	0.69 Kg
Gross Weight	1.16 Kg
Power Supply	12V DC/1A, 5.5mm Coaxial Power Plug
Antenna	• Quantity: 2 • Type: 690~960&1710~2690MHz Dipole Omni-Directional Antenna • Gain: Ant1:0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz Ant2:0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz
Protection	IP66
Product Dimensions (L x W x H)	120 × 182 × 201 mm (excluding antennas)
Certifications	CE, RCM, BSMI, RoHS, NCC

Adatok

Gyártói cikkszám:

VIGI C540-4G(4MM)

EAN:

4895252504910

Gyártó:

TP-LINK

EAN:

4895252504910

Csatlakozók:

LAN, WI-FI

Felbontás:

1920 x 1080 (FHD1080) 16:9

Színes/FF:

Színes

Kültéri kivitel:

Van

Tömeg:

1,21 kg/db
